AIS3 EOF 2026#

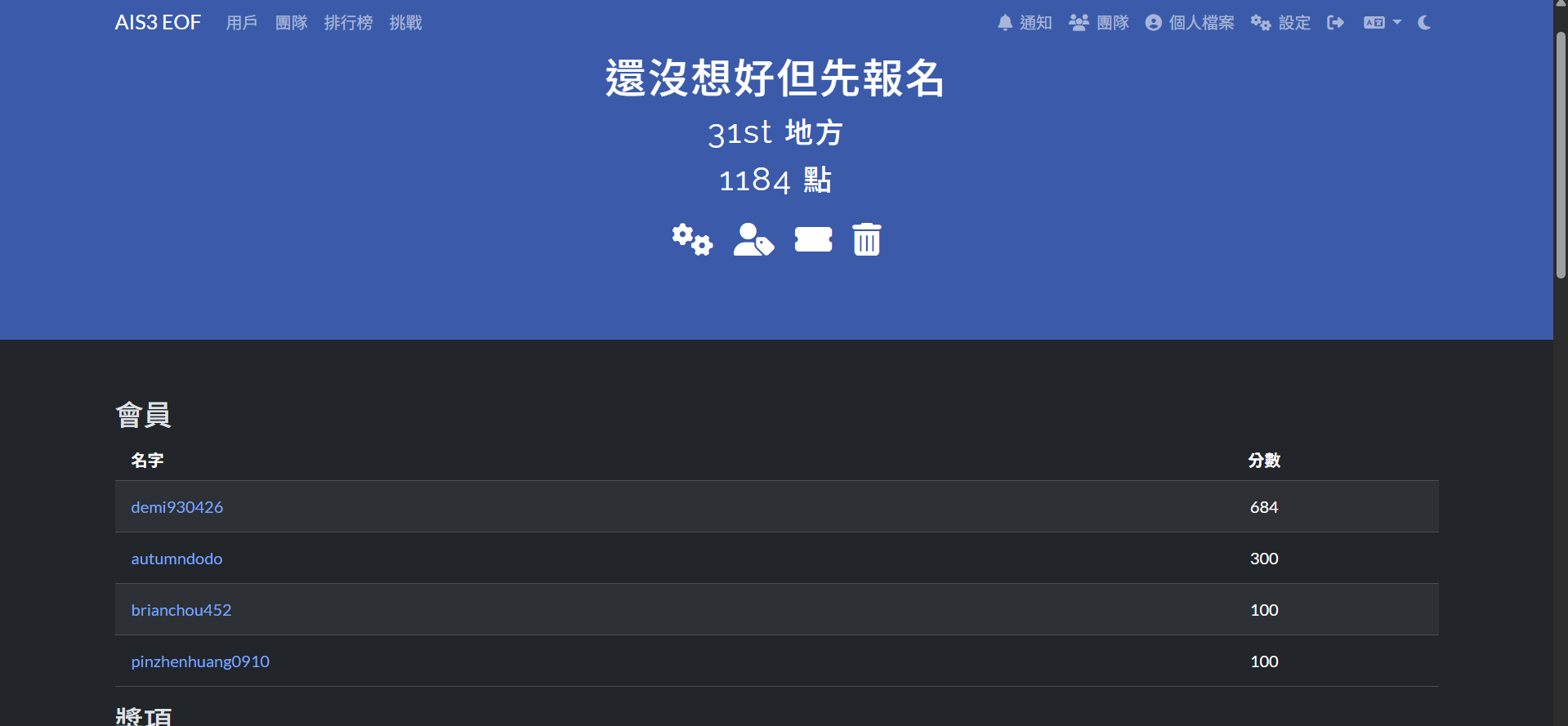

排名 31

感謝電神隊友們 🙏

三天一直在坐牢，有摸過其他題目，像是SaaS、CookieMonster Viewer、Welcome To The Django、Impure還有前兩題 Crypto，但最後都沒有解出來

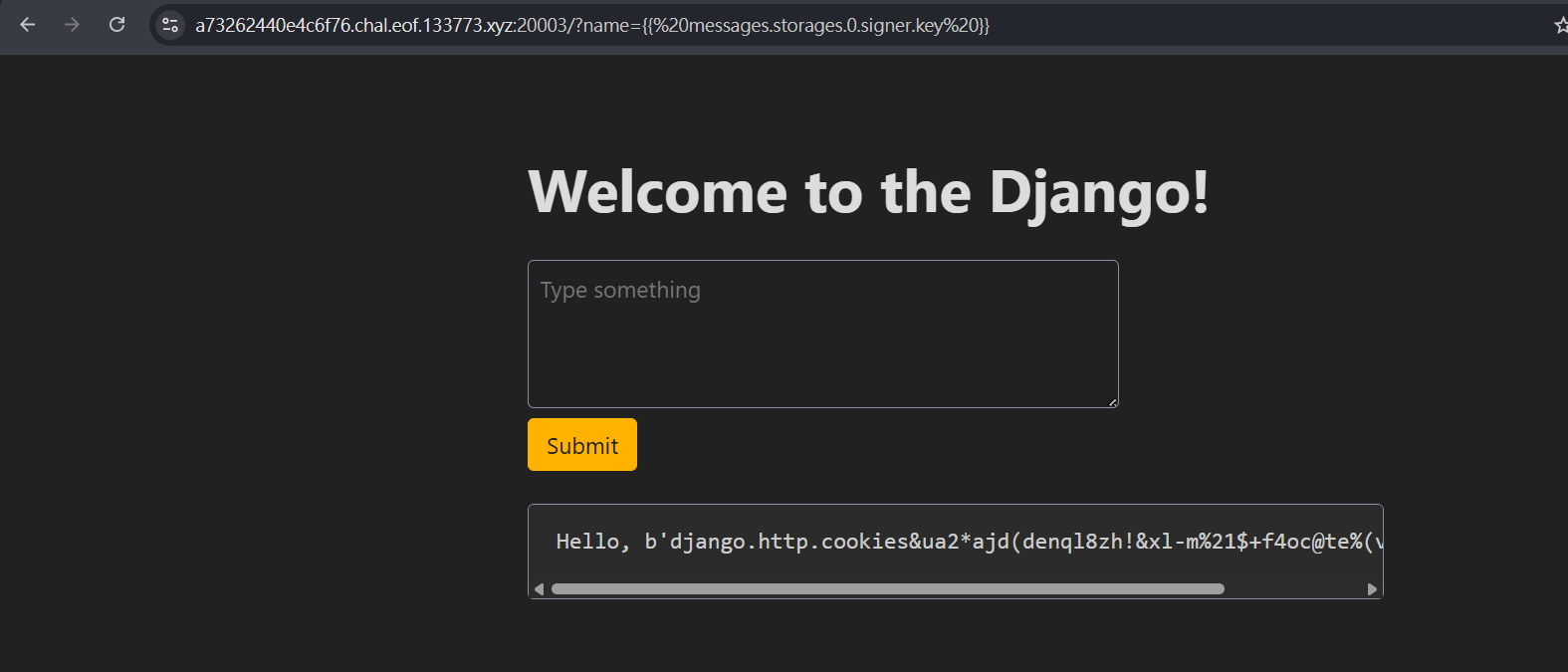

尤其是 Welcome To The Django 那題，最後才去看，把 secret key 撈出來之後，不知道要用在哪裡 💀

之後再去看看大佬們的 writeup

Misc#

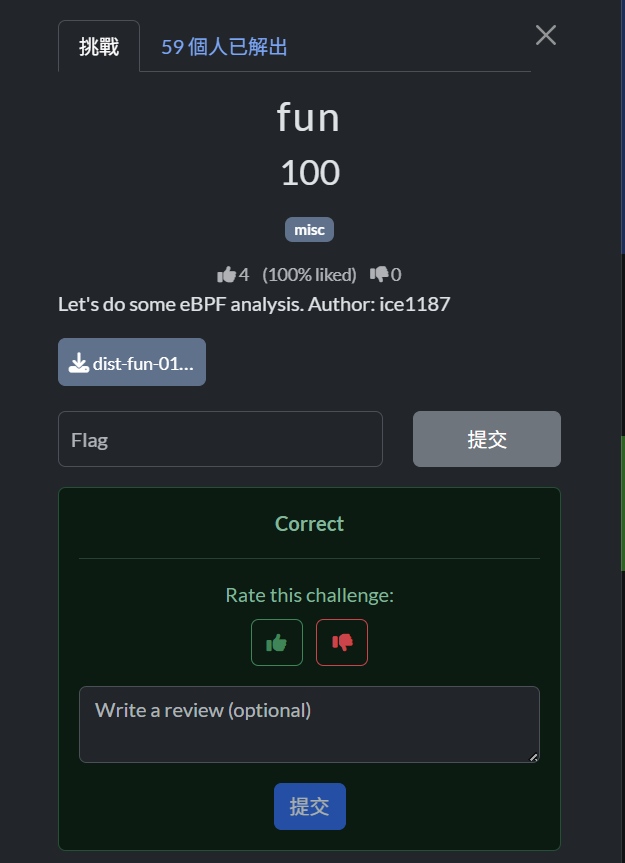

fun#

這題提供了一個 eBPF 程式 xdp_prog.o，可以使用 llvm-objdump 反組譯：

1
llvm-objdump -S xdp_prog.o

可以看到程式中對封包的處理：

1
xdp_prog.o:     file format elf64-bpf
2

3
Disassembly of section xdp:
4

5
0000000000000000 <xdp_encoder>:
6
       0:       b7 00 00 00 02 00 00 00 r0 = 0x2
7
       1:       61 13 04 00 00 00 00 00 r3 = *(u32 *)(r1 + 0x4)
8
       2:       61 12 00 00 00 00 00 00 r2 = *(u32 *)(r1 + 0x0)
9
       3:       bf 24 00 00 00 00 00 00 r4 = r2
10
       4:       07 04 00 00 0e 00 00 00 r4 += 0xe
11
       5:       2d 34 e8 01 00 00 00 00 if r4 > r3 goto +0x1e8 <LBB0_72>
12
       6:       71 24 0d 00 00 00 00 00 r4 = *(u8 *)(r2 + 0xd)
13
       7:       67 04 00 00 08 00 00 00 r4 <<= 0x8
14
       8:       71 25 0c 00 00 00 00 00 r5 = *(u8 *)(r2 + 0xc)
15
       9:       4f 54 00 00 00 00 00 00 r4 |= r5
16
      10:       55 04 e3 01 08 00 00 00 if r4 != 0x8 goto +0x1e3 <LBB0_72>
17
      11:       bf 24 00 00 00 00 00 00 r4 = r2
18
      12:       07 04 00 00 22 00 00 00 r4 += 0x22
19
      13:       2d 34 e0 01 00 00 00 00 if r4 > r3 goto +0x1e0 <LBB0_72>
20
      14:       71 24 17 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x17)
21
      15:       55 04 de 01 11 00 00 00 if r4 != 0x11 goto +0x1de <LBB0_72>
22
      16:       bf 24 00 00 00 00 00 00 r4 = r2
23
      17:       07 04 00 00 2a 00 00 00 r4 += 0x2a
24
      18:       2d 34 db 01 00 00 00 00 if r4 > r3 goto +0x1db <LBB0_72>
25
      19:       69 24 24 00 00 00 00 00 r4 = *(u16 *)(r2 + 0x24)
26
      20:       55 04 d9 01 23 28 00 00 if r4 != 0x2823 goto +0x1d9 <LBB0_72>
27
      21:       b7 04 00 00 00 00 00 00 r4 = 0x0
28
      22:       63 4a f8 ff 00 00 00 00 *(u32 *)(r10 - 0x8) = r4
29
      23:       7b 4a f0 ff 00 00 00 00 *(u64 *)(r10 - 0x10) = r4
30
      24:       7b 4a e8 ff 00 00 00 00 *(u64 *)(r10 - 0x18) = r4
31
      25:       7b 4a e0 ff 00 00 00 00 *(u64 *)(r10 - 0x20) = r4
32
      26:       7b 4a d8 ff 00 00 00 00 *(u64 *)(r10 - 0x28) = r4
33
      27:       7b 4a d0 ff 00 00 00 00 *(u64 *)(r10 - 0x30) = r4
34
      28:       7b 4a c8 ff 00 00 00 00 *(u64 *)(r10 - 0x38) = r4
35
      29:       7b 4a c0 ff 00 00 00 00 *(u64 *)(r10 - 0x40) = r4
36
      30:       7b 4a b8 ff 00 00 00 00 *(u64 *)(r10 - 0x48) = r4
37
      31:       bf 25 00 00 00 00 00 00 r5 = r2
38
      32:       07 05 00 00 2b 00 00 00 r5 += 0x2b
39
      33:       2d 35 c2 01 00 00 00 00 if r5 > r3 goto +0x1c2 <LBB0_71>
40
      34:       71 24 2a 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x2a) # 從 r2 的位址加上 0x2a 取一個 byte
41
      35:       a7 04 00 00 af 00 00 00 r4 ^= 0xaf
42
      36:       73 4a bc ff 00 00 00 00 *(u8 *)(r10 - 0x44) = r4
43
      37:       b7 04 00 00 01 00 00 00 r4 = 0x1
44
      38:       bf 25 00 00 00 00 00 00 r5 = r2
45
      39:       07 05 00 00 2c 00 00 00 r5 += 0x2c
46
      40:       2d 35 bb 01 00 00 00 00 if r5 > r3 goto +0x1bb <LBB0_71>
47
      41:       71 24 2b 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x2b)
48
      42:       a7 04 00 00 f4 00 00 00 r4 ^= 0xf4
49
      43:       73 4a bd ff 00 00 00 00 *(u8 *)(r10 - 0x43) = r4
50
      44:       b7 04 00 00 02 00 00 00 r4 = 0x2
51
      45:       bf 25 00 00 00 00 00 00 r5 = r2
52
      46:       07 05 00 00 2d 00 00 00 r5 += 0x2d
53
      47:       2d 35 b4 01 00 00 00 00 if r5 > r3 goto +0x1b4 <LBB0_71>
54
      48:       71 24 2c 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x2c)
55
      49:       a7 04 00 00 84 00 00 00 r4 ^= 0x84
56
      50:       73 4a be ff 00 00 00 00 *(u8 *)(r10 - 0x42) = r4
57
      51:       b7 04 00 00 03 00 00 00 r4 = 0x3
58
      52:       bf 25 00 00 00 00 00 00 r5 = r2
59
      53:       07 05 00 00 2e 00 00 00 r5 += 0x2e
60
      54:       2d 35 ad 01 00 00 00 00 if r5 > r3 goto +0x1ad <LBB0_71>
61
      55:       71 24 2d 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x2d)
62
      56:       a7 04 00 00 2d 00 00 00 r4 ^= 0x2d
63
      57:       73 4a bf ff 00 00 00 00 *(u8 *)(r10 - 0x41) = r4
64
      58:       b7 04 00 00 04 00 00 00 r4 = 0x4
65
      59:       bf 25 00 00 00 00 00 00 r5 = r2
66
      60:       07 05 00 00 2f 00 00 00 r5 += 0x2f
67
      61:       2d 35 a6 01 00 00 00 00 if r5 > r3 goto +0x1a6 <LBB0_71>
68
      62:       71 24 2e 00 00 00 00 00 r4 = *(u8 *)(r2 + 0x2e)
69
      63:       a7 04 00 00 04 00 00 00 r4 ^= 0x4
70
      64:       73 4a c0 ff 00 00 00 00 *(u8 *)(r10 - 0x40) = r4
71
      65:       b7 04 00 00 05 00 00 00 r4 = 0x5
72
      66:       bf 25 00 00 00 00 00 00 r5 = r2
73
      ......

從反組譯可以看出，flag 是從封包的特定 offset 讀出來後，逐個 byte XOR 一個固定值。

根據反組譯，可以整理出 XOR key 表，對應封包 offset 從 0x2a 開始，每個 byte 對應一個 XOR key。

1
xor_table = [
2
    0xaf, 0xf4, 0x84, 0x2d, 0x04, 0x9a, 0x39, 0x0f,
3
    0x2b, 0xc0, 0x1d, 0x78, 0xd9, 0xb7, 0x0a, 0x7d,
4
    0xba, 0x11, 0xaa, 0xe6
5
]
6

7
def xdp_decode(packet_bytes):
8
    decoded = bytearray()
9
    for i, key in enumerate(xor_table):
10
        offset = 0x2a + i
11
        if offset >= len(packet_bytes):
12
            break
13
        decoded_byte = packet_bytes[offset] ^ key
14
        decoded.append(decoded_byte)
15
    return decoded
16

17
with open("flag.enc", "rb") as f:
18
    enc_bytes = f.read()
19

20
decoded_flag = xdp_decode(enc_bytes)
21
print(decoded_flag.decode(errors="ignore"))

得到 flag

1
EOF{si1Ks0Ng_15_g0oD_T0}

就是說，這一科期末考大失敗啊 😭
在期末考周參加 EOF 初賽還是太極限了，那三天都在打 CTF 或去上 AIS3 的課，導致後面一個禮拜每天都在創造奇蹟，瘋狂趕報告或是讀期末考，天天熬夜甚至是通宵。
明年再加油吧 (╥﹏╥)
